Removable Steam-Flon®

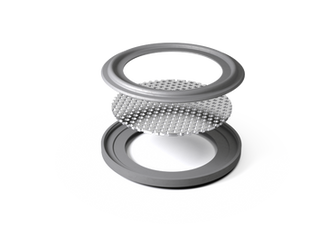

The Removable Steam-Flon® is a gasket we developed because of its unique mechanical properties. The gasket is made out of two mating parts. In between these two parts you can place any kind of product as long as it is no thicker than 1.00 mm. Products like orifice plates, screens and perforated discs can be used.



The Removable Steam-Flon® gasket can be dismantled after use, cleaned and reassembled again without any problem. Perfect if a screen needs to be cleaned. Orifice plates can be exchanged rapidly. Sock screens which cannot be supplied with a PTFE-seal can now be equipped with a Steam-Flon® seal.

Compound data sheets

bROCHURE

engineering

part numbers

Steam-Flon Blue LQ_4x.png

Click on the above photo for more details

If we want to install an orifice plate with a thickness of 1.00 mm, we use the setup with two mating parts both consisting of a 0.50 mm chamber. These two chambers add up to 1.00 mm. Carefully locate the centre chamber, place the orifice plate inside and click the two gasket halves together so they lock.

Steam-flon rem I.jpg
Steam-flon rem II.jpg

If we want to install a screen with a thickness of 0.45 mm, we use the setup with two mating parts one with a 0.50 mm chamber and one without, so flat. Carefully locate the centre chamber, place the screen inside and click the two gasket halves together so they lock.

Steam-flon rem III.jpg
Steam-flon rem IV.jpg

Steam-Flon® removable is available in the following standards:

DIN32676 Serie A                                DN08 -DN250

DIN32676 Serie B  (ISO1127)              DN10 -DN250

DIN32676 Serie C  (ASME BPE)          1/2" - 10"

SMS3017/ISO2852                               DN12 -DN219,1



Also available for DIN11851 milkthread fittings, both for Screens and Orifice Plates.

Contact us for details.
