Overview

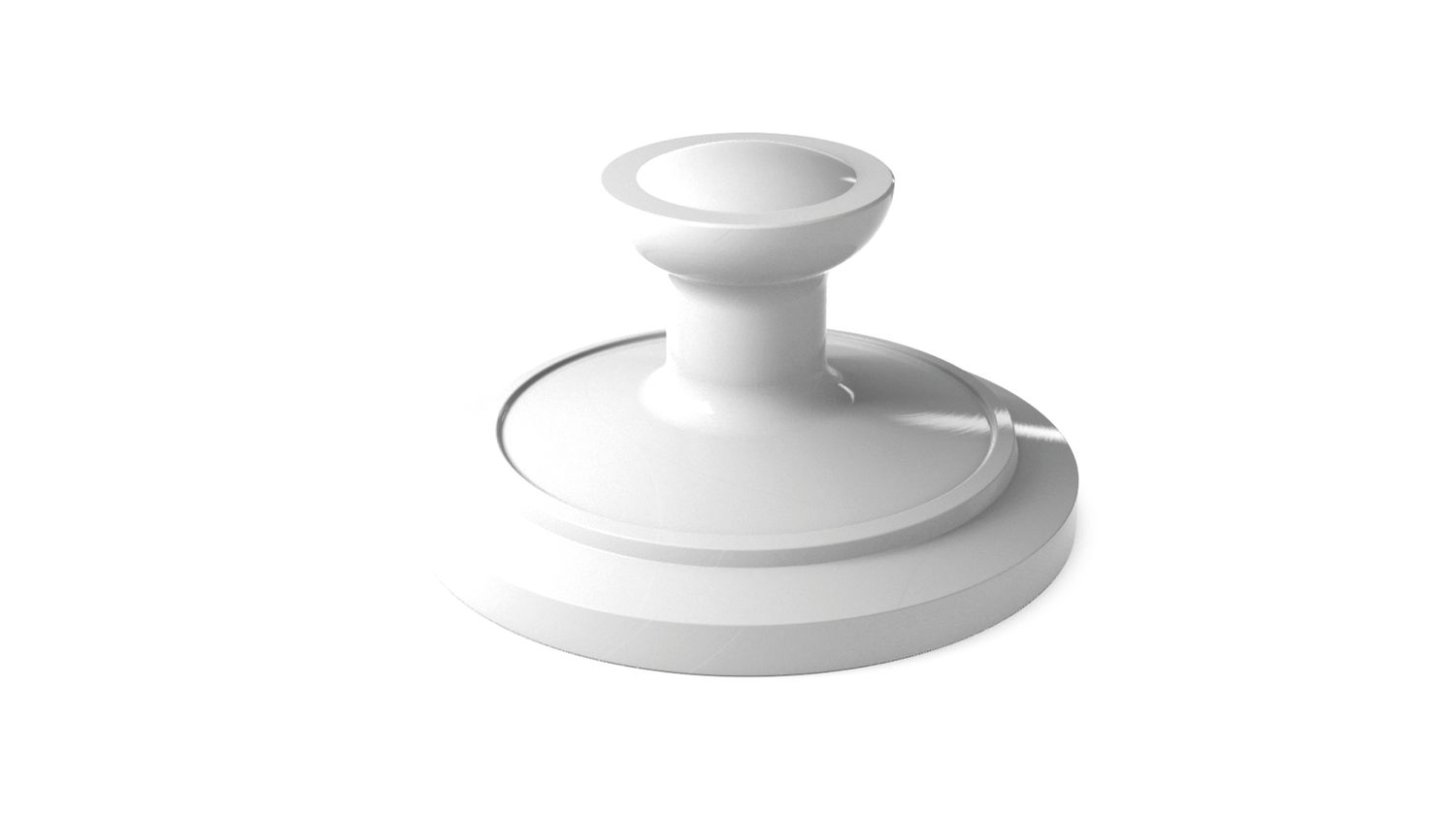

OEM Replacement Radial-style Diaphragms

The radial-style diaphragm in TFM (PTFE) offers an advanced solution for fluid regulation, combining robust performance. Made from high-flex modified PTFE to increase the life expectance of this diaphragm. It is ideally suited for applications in sectors where safety, hygiene, chemical exposure and precise process control are crucial.

Applications

The replacement diaphragm in TFM is ideal for:

• Pharmaceutical manufacturing up-stream processes – Tank Bottom Outlet Valve, Point of Use valves.
• Biotechnological applications
• Cleaning in Place (CIP) – Harsh cleaning media

Technical Specifications

• Pressure Range: Engineered for high-demand environments. Range 0 to 6 bar (-14 to 88 PSI).
• Temperature Range: Min -15˚C to SIP @ 190˚C
• Material: CMD-1102 TFM white, Modified PTFE
• Laser Engraved: Each diaphragm is laser-engraved with Lot# and D.O.M. and DN#, ensuring full traceability
• Packaging:
  • Standard: Sealed bag + carton box
  • Optional: Cleanroom ISO7 packaged (non-sterile) double-bag
• Quality: At Ultrapharma, we uphold the highest quality standards by carefully controlling raw materials and ensuring full traceability throughout every stage of manufacturing.

Compliance

• USP<87>, USP<88>, USP<661>
• FDA CFR177.1550
• ADIF BSE-TSE free
• NEN-ISO 21675 (2025)
• 316SS shaft with heat# registration

Testing

Radial-style diaphragms have been tested per ASME BPE Appendix K. Evaluation tests included SIP (Steaming In Place) up to 500 cycles.
